Uqwalaselo olungundoqo
& Uphawu
I-1.Amandla amakhulu 150W-300W CO2 iglasi ye-tube laser cutting machine
2. Umzimba womatshini odibeneyo wamandla aphezulu, isinyithi esikhethekileyo seshidi;
3. I-Y axis esecaleni kabini rack i-double drive servo motor drive idityaniswe nesinciphisi esichanekileyo
4. X axis rack kunye kaloliwe kabini servo drive;
5. I-Taiwan T-WIN rack, i-Taiwan CSK track;
6. I-aluminiyam ye-alloy gantry enye;
7. I-Ruida edge-finding system,Iparameter nganye yomaleko inokusetwa ngokwahlukileyo ukuze iqonde umsebenzi wokusika kunye nokujongwa kwitemplate, ukusebenza ngokulula.
8.Support incorruptible engraving recovery emva kokucinywa kombane Iyahambelana ne Light Burn
9. Uyilo lwendlela yelaser rhoqo, qinisekisa ukuchaneka okuphezulu
10. Uphawu oludumileyo lwe-S&A lwe-brand ye-industrial chiller CW6000
Intshayelelo yevidiyo
IiNkcazo zeTekhnoloji
| Indawo yokusebenza | 1300*2500MM |
| Amandla eLaser | 150W-300 W |
| Uhlobo lweLaser | Amanzi atywiniweyo okupholisa ityhubhu ye-laser CO2 |
| Ukusika isantya | 0-600mm/s |
| Ukubeka ngokutsha ukuchaneka | <0.05mm |
| Ubuncinci bokubumba uphawu | <1*1mm |
| Umbane osebenzayo | AC110-220V ± 10%, 50-60HZ |
| Lawula isoftware | I-Art Cut, iPhotoshop CorelDraw, AutoCAD |
| Ifomathi yomzobo iyaxhaswa | PLT/DXF/DST/BMP/AI njl |
| Ubungakanani bokupakisha | 3800*1960*1150mm |
| Ubunzima bokuqala | 800kg |
| Ubushushu bokusebenza | 0-45℃ |
| Iwaranti | Iinyanga ezili-12, iindawo ezityiwayo azibandakanywanga |
Iimpawu eziphambili zoqwalaselo
| 一 | Inxalenye yomatshini | ||
| 1 | ityhubhu yeLaser | 1pcs | Ityhubhu yeLaser 300W |
| 2 | Intloko yokusika i-laser yoshishino | iyunithi 1 | DOWIN ngokwezifiso |
| 3 | Ibhedi yomatshini | 1 iseti | Umatshini wokuwelda isakhiwo sentsimbi |
| 4 | I-Y-axis rack | 2 iiyunithi | T-WIN rack |
| 5 | I-X-axis rack | iyunithi 1 | T-WIN rack |
| 6 | Isikhokelo esichanekileyo | iyunithi | CSK |
| 7 | XY axis motor kunye nomqhubi | iiyunithi ezi-3 | Leadshine Servo |
| 8 | Inkqubo ye-CNC | iyunithi 1 | I-Ruida 6445G enenkqubo yeCCD |
| 9 | Uphawu oludumileyo lwe-S&A Water Chiller | iyunithi 1 | CW6000 |
| 10 | Isixhobo sokukhupha uthuli | iyunithi 1 | Uyilo olufunxayo oluphezulu, ifaneli ephindwe kabini, umbhobho wokukhupha kabini, abalandeli be-750W abaphindwe kabini |
Umatshini imifanekiso eneenkcukacha

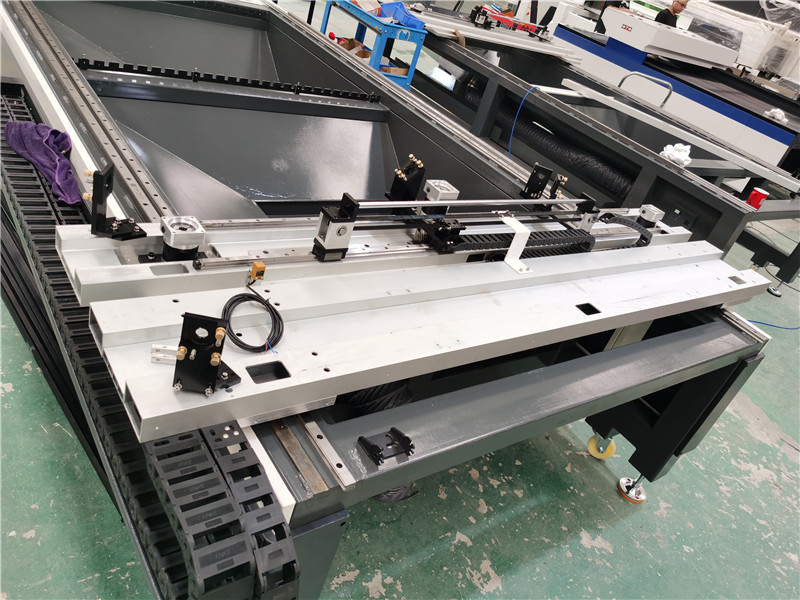

Umzimba womatshini ohlangeneyo onamandla aphezulu

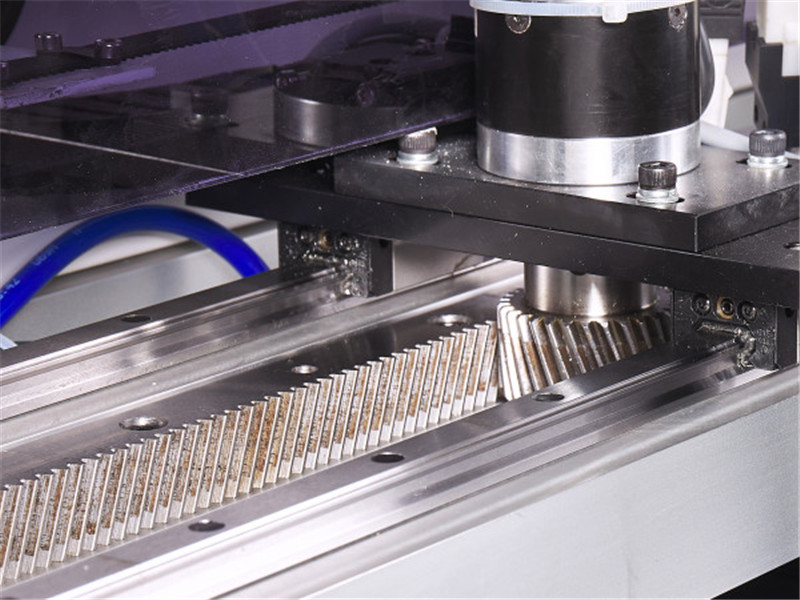

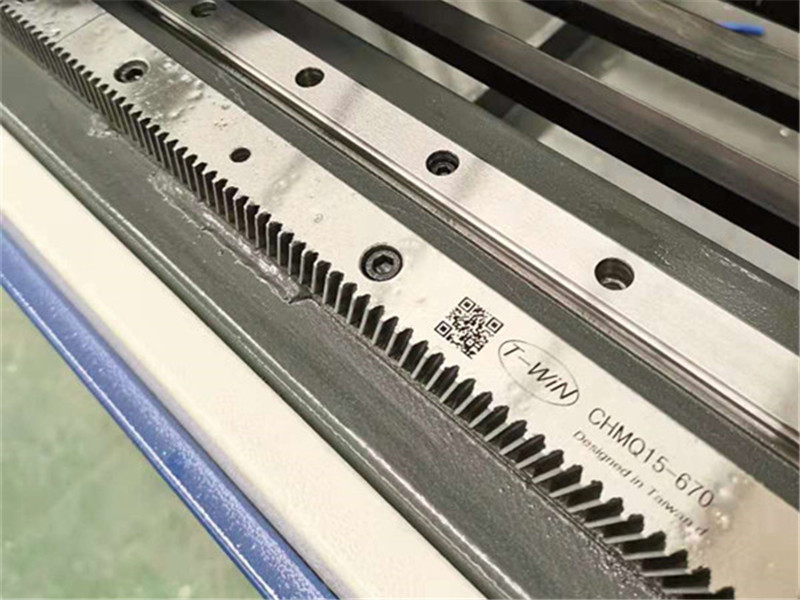

I-Y-axis rack

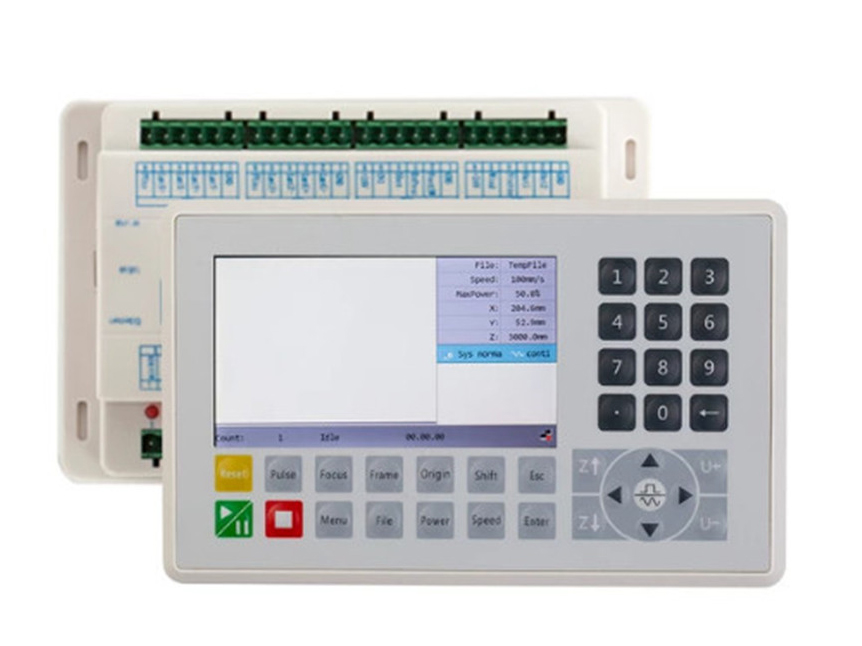

Ikhadi lamva nje lokulawula isikrini sombala we-Ruida ngaphandle kwe-intanethi
I-X-axis rack

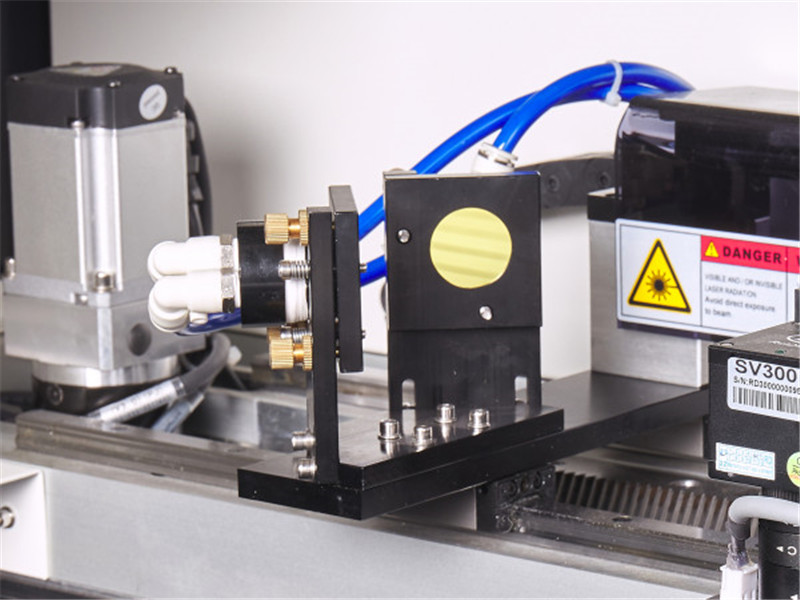

Uyilo lwendlela yelaser rhoqo

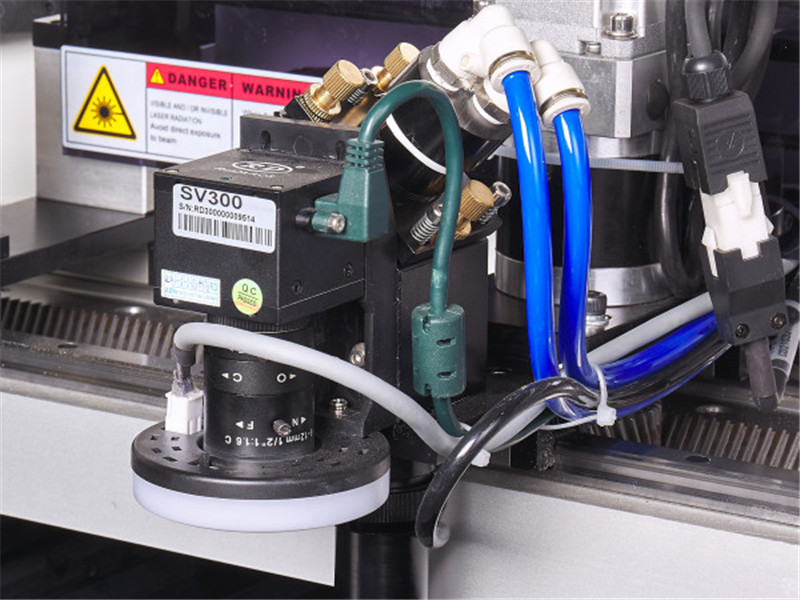

Ruida CCD edge-fumana inkqubo yokubeka

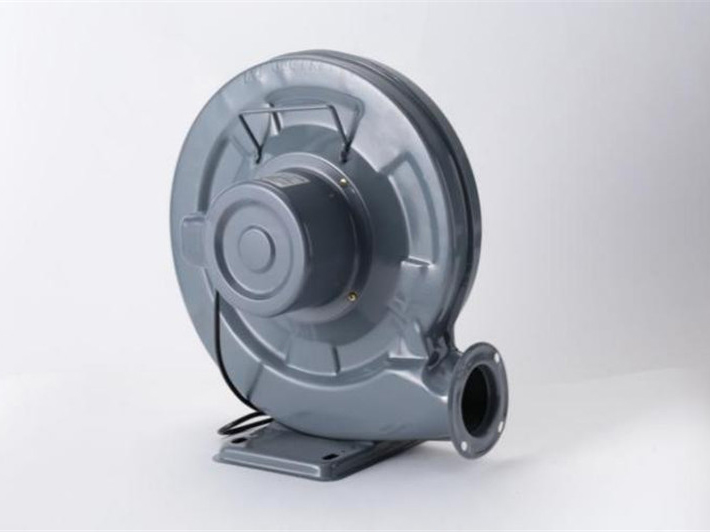

Ukukhupha fan 750W

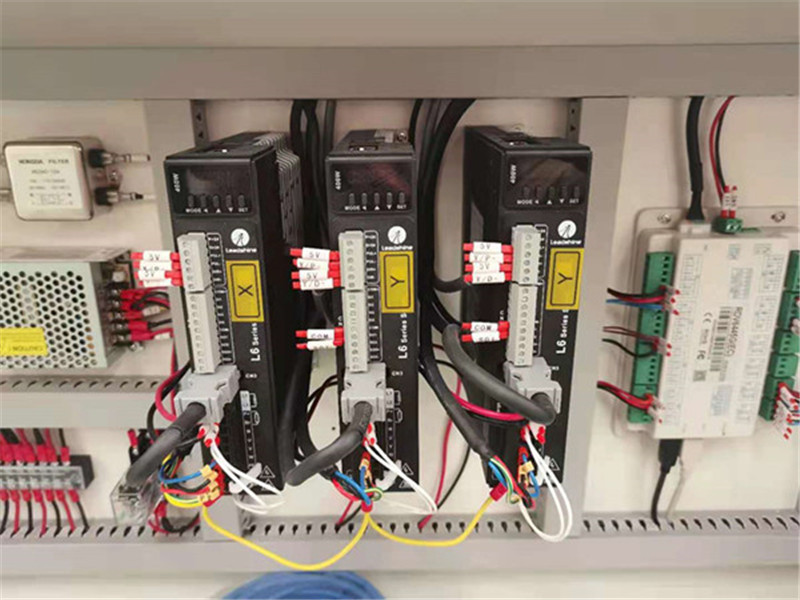

Leadshine Servo Motor Y-axis Dual Driver

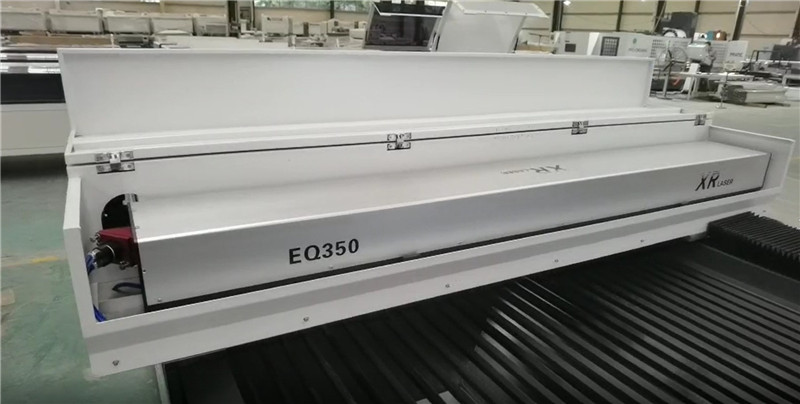

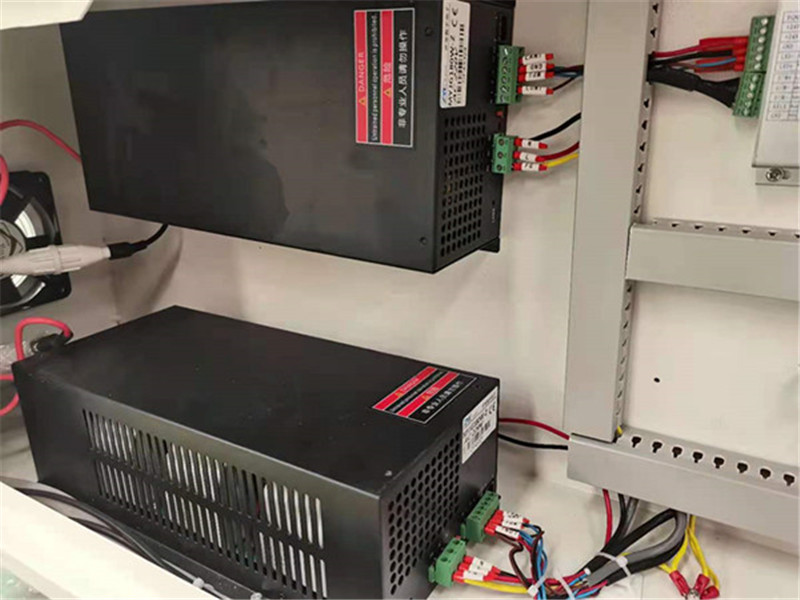

Mingyu laser unikezelo lwamandla

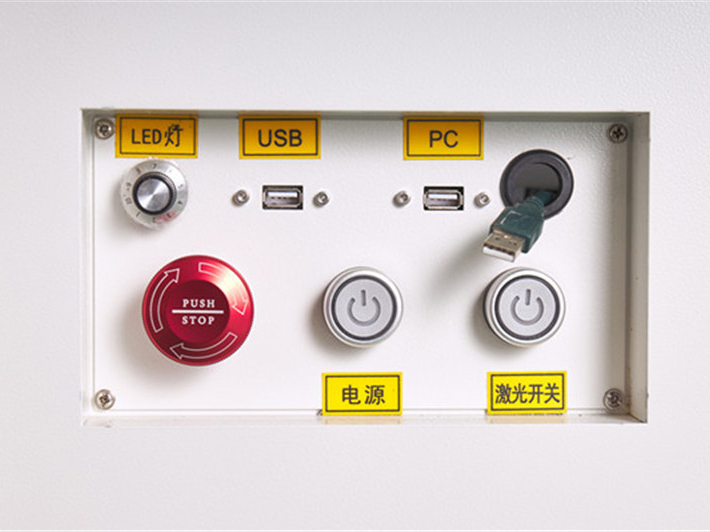

Iswitshi yolawulo eyakhelweyo
