Small size CO2 Laser engraving cutting machine with Ruida software

Model:DW-6040Pro CO2 laser engraving cutting machine uses carbon dioxide laser technology. This type of laser equipment is a general-purpose model, with a rear focus method, small size and high degree of integration.High precision with CE and FDA certification for USA and European market.

Send Email to Us

Get Price on Whatsapp

Features

01

High speed module rails ,dust proof and no noise.

02

Industry Laser cutting head with red dot and Autofocus mechanism

03

Individual Ruida controller , Each layer parameter can be set separately to realize cutting and etching function on template , easy operate.

04

Compatible with Light Burn , Coreldraw , ect

05

Support incorruptible engraving recovery after power-off

Small size CO2 Laser engraving cutting machine with Ruida softw ( (3)

Video introduction

Please check Video to see more details and how it works introduction:

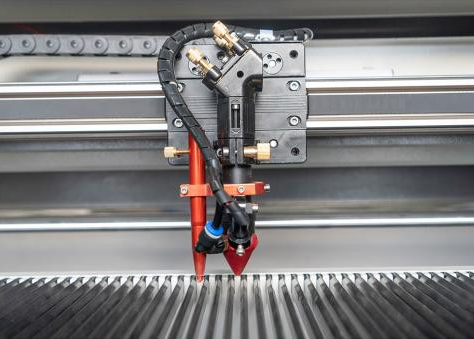

Laser hand with red dot

Rubber self-inking stamp laser making engraving machine (12)

RUIDA 6445 software

Rubber self-inking stamp laser making engraving machine (1)

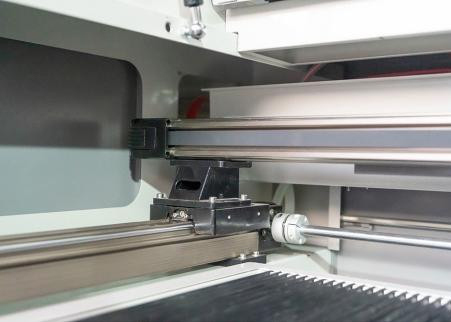

Module liner

Rubber self-inking stamp laser making engraving machine (2)

S&A CW-3000 water chiller

Rubber self-inking stamp laser making engraving machine (3)

Brand Laser tube

Rubber self-inking stamp laser making engraving machine (4)

Blade working table

Rubber self-inking stamp laser making engraving machine (5)

High quality stand and wheels

Rubber self-inking stamp laser making engraving machine (6)

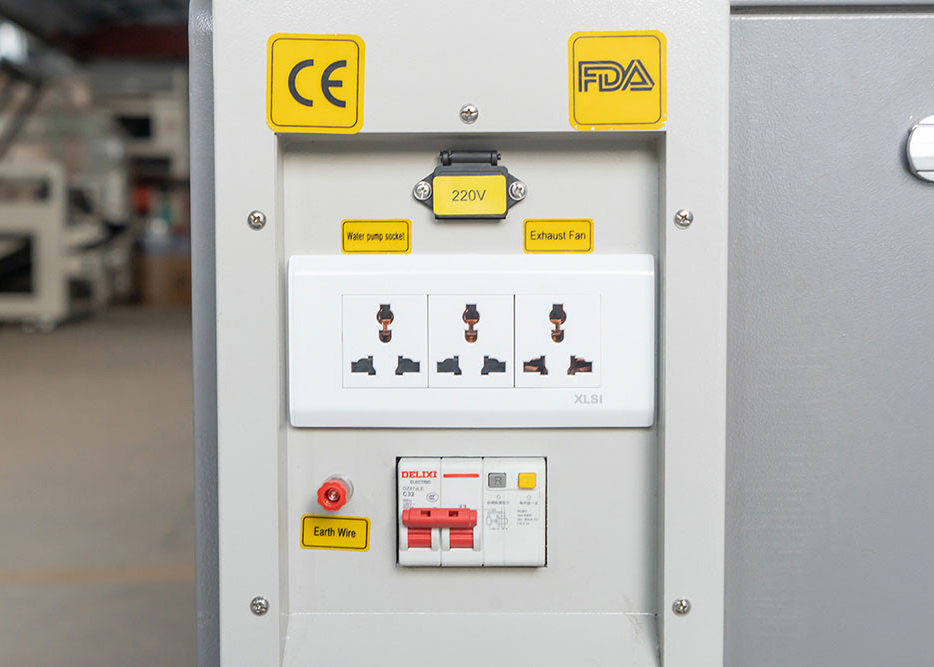

Safe leak-proof socket

Rubber self-inking stamp laser making engraving machine (7)

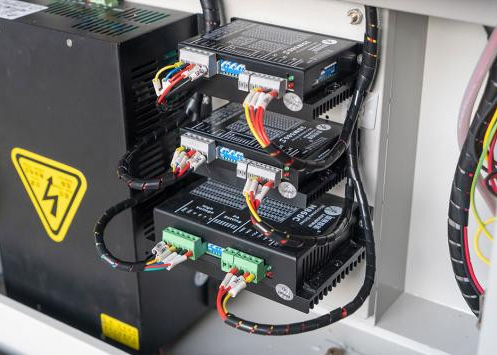

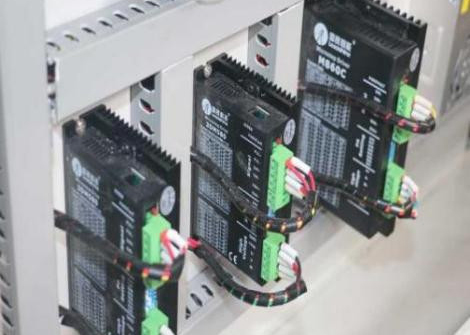

Leadshine 57 motors and drives

Rubber self-inking stamp laser making engraving machine (8)

Brand Power supply

Rubber self-inking stamp laser making engraving machine (9)

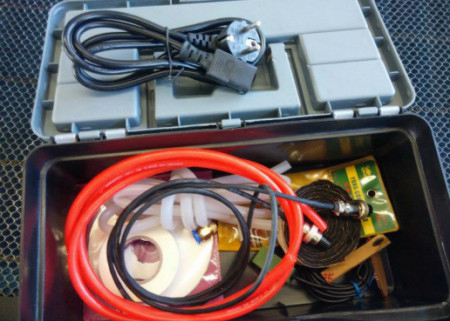

Standard tools box

Rubber self-inking stamp laser making engraving machine (10)

Wooden package

Rubber self-inking stamp laser making engraving machine (11)

Tech Specifications

Main Technical Parameters of the Slimline 1390 CO2 Laser cutting machine

Model	DW-6040 Pro
Working Area	600*400mm
Laser Power	60W/80W/100W
Laser type	CO2 laser
Laser Wave Length	10.6um
Working Table	Blade working table
Electrical Up-down:	Yes (Electrical)
Maximum Idle Running Speed	0~3600mm/min
Display	LCD monitor system
Resolution ratio	4000DPI
Scanning Precision	0.005mm
Control System	PC control with Ruida 6445 software
Position Type	Red dot and auto focus
Support graphic format	AI, PLT,BMP, DST, DWG, DXF...
Working Voltage	110V/220V±10% ,50~60HZ
Working life of fiber module	More than 5000 hours
Gross Weight	170KG
Packing size	12093110cm
Standard configuration	Installed exhaust fan, Air compressor ,S&A chiller CW-3000

Note: As products are constantly updated, please contact us for the latest specifications.

Application materials

Small size CO2 Laser machine with Ruida software is suitable for engraving and cutting most non-metallic materials, such as paper packaging, plastic products, label paper, leather cloth, glass ceramics, resin plastics, bamboo and wood products, wood ,MDF,acrylic, leather
PCB boards, etc. It is widely used because of its wide range, safety and reliability, precision and meticulousness, environmental protection, consistent effect, high speed and low cost.

Slimline 1390 CO2 Laser cutting machine for acrylic wood MDF

Request

1.What is your main processing requirement? Laser cutting or laser engraving (marking) ?
2. What material do you need to laser process?
3. What is the size and thickness of the material?
4. Your company name, website, Email, Tel (WhatsApp…)?Are you reseller or need it for your own business?
5. How do you want to ship it , by sea or by express , whether do you have your own forwarder?
