Details

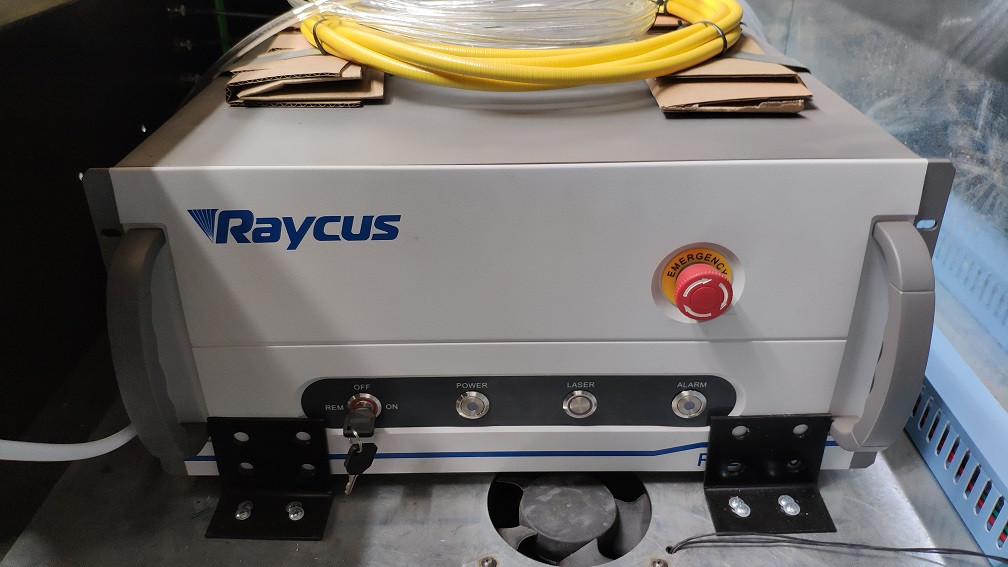

Raycus Fiber laser generator

Metal Pipe Fiber laser cutting machine

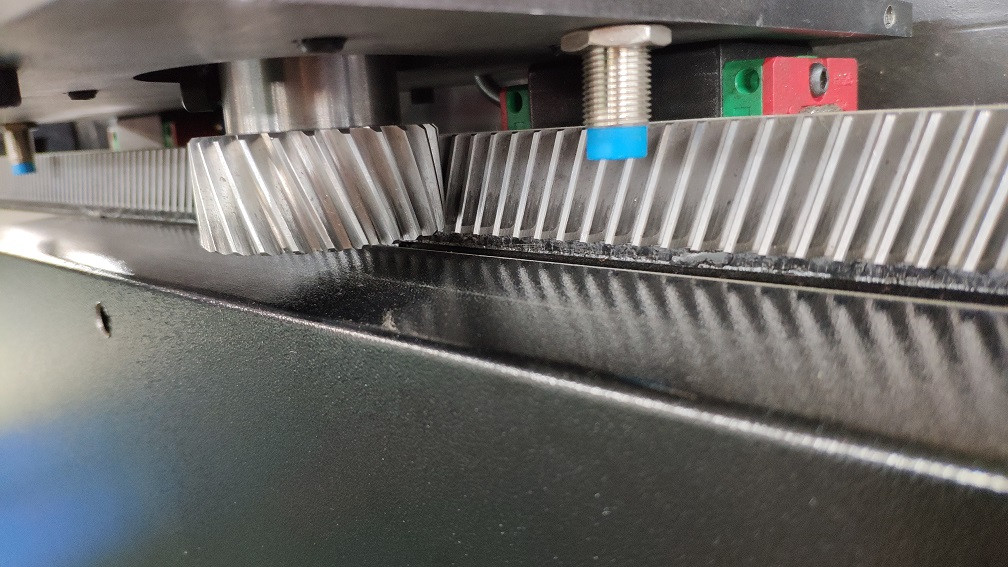

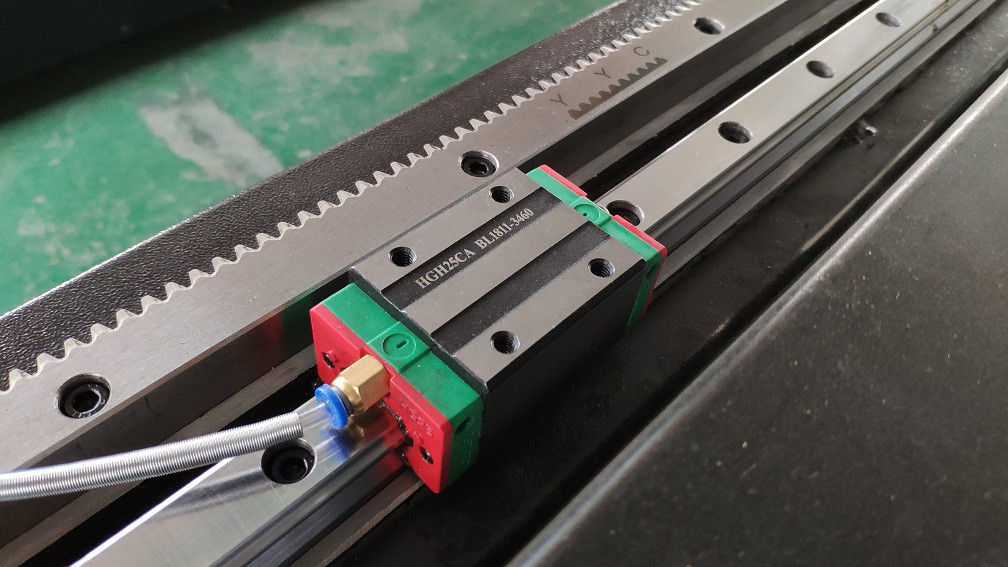

Taiwan Hiwin Rails and YYC brand Gear:

Metal Pipe Fiber laser cutting machine
Metal Pipe Fiber laser cutting machine

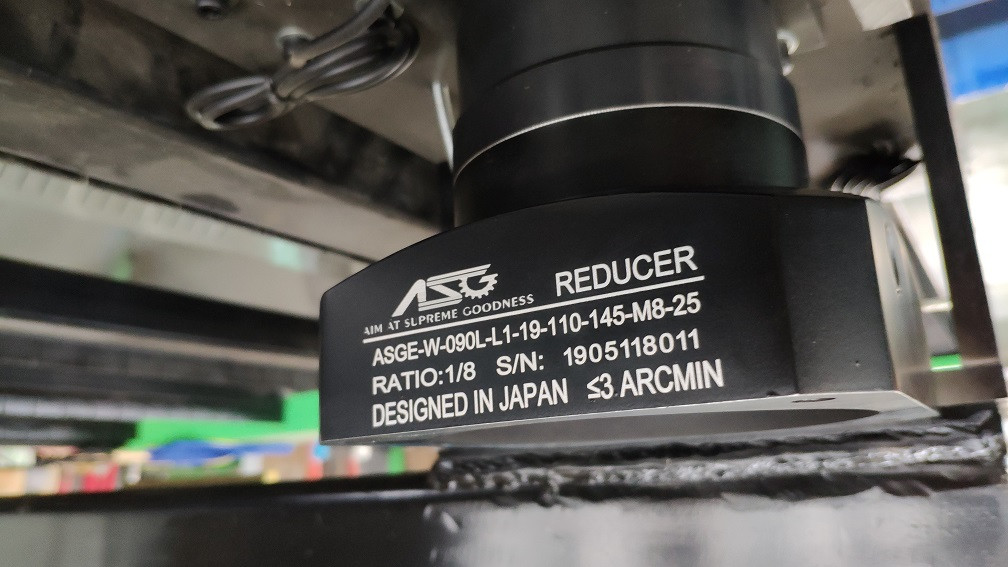

Japanese Reducer and Yaskawa AC servo motors:

Metal Pipe Fiber laser cutting machine

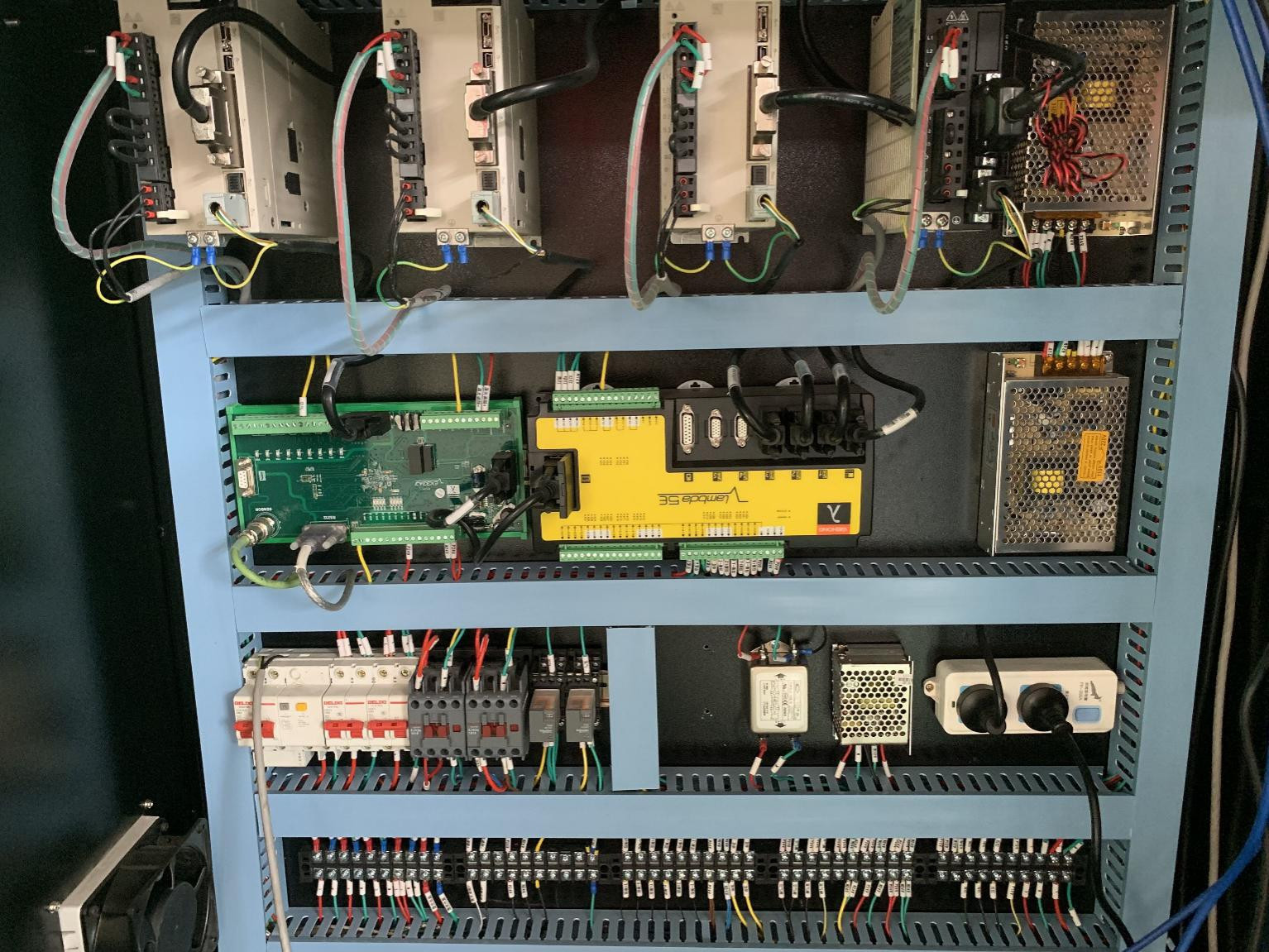

Clear electric box

Metal Pipe Fiber laser cutting machine

Video introduction

Tech Specifications

Size 6m/9m  Fiber laser cutting machine
Diameter Dia 250mm
Laser Power 1000W/1500W/2000W/3000W/4000W/6000W Wuhan Raycus Fiber laser generator
Laser Wave Length 1064nm
Maximum Idle Running Speed 1200mm/s
Moving speed 100RPM/min
Position Accuracy ±0.03mm/m
Position Speed 20m/min
Minimum Line Width ± 0.02mm
Maximum Acceleration 0.8G~1.0G
Cutting Thickness Depends
Software and Control System Cypcut Version 3000+CypNest system
Position Type Red dot
Power Consumption ≤3.0 KW (Example 1000W power)
Working Voltage 380V/50-60Hz
Auxiliary Gas oxygen, nitrogen, air
Working life of fiber module More than 100000 hours
Fiber laser cutting head Raytools
Software Compatible with various formats
Computer Yes
Water cooling system Hanli industry chiller
Motor&Driver Fuji Japan (Optional Yasakawa )
Reducer Shimpo From Japan
Liner guider system Taiwan HIWIN
Rack gear transmission YYC Precision double rack drive
Electric component Schneider made in France
Proportional valve Yes
Lubrication system Yes Automatic
Weight 1500Kgs
Warranty 3 Years

Applicable Industry

This machine is widely used in various industries such as advertising decoration, kitchen ware, engineering machinery, steel and iron, automobile, metal plate chassis, air-conditioner manufacturing, metal plate cutting, etc.

Applicable Materials

Mainly used for cutting metal plates such as stainless steel, carbon steel, galvanized plate, various alloy, etc
