Desktop small enclosure model fiber laser marking machine

Enclosed design, The safety factor is particularly high, open door protective system, when open the cover laser stops.

Laser source: Raycus famous laser source, 3 years warranty
Galvo head:Our galvo head add double red lights focus and alarm-light device,find focus faster and more accurately
Control software:use 100% genuine BJJCZ -EZCAD control software ,it supports XP WIN7 /8 /10 32/64 bit operating system,support multiple languages
F-theta-lens:use the best OPEX brand lens from Wavelength length
Power supply:use genuine Taiwan Mean Well brand power supply,safer and more durable

Tech Specifications

Model	DW-20FDE
Working area	110110(150150/175*175)mm
Laser Power	20W (optional 30w 50w)
Laser source	Raycus
Wavelength	1064nm
Software	Genuine EZCAD
Repetitive frequency	20kHz-100kHz
Cooling mode	Air Cooling
Pulse width	<100ns
Peak power	25-80KW/10KHz
Marking speed	7000mm/s
Mini line width	0.01mm
Location accuracy	<10urad
Support operation system	Win7/8/10 system
Graphic format supported	AI, DXF, DST, DWG, PLT, BMP, DXF, JPG, TIF, AI etc
Packing Size	826990cm
Power supply	110V-220V/50-60Hz
Power consumption	Less than 800W
Red laser pointer	Double red lights
Open door protection system	Optional
Rotary	Optional

Application

Enclosed jewelry metal fiber laser marking machine is a fast and clean technology that is rapidly replacing older laser technologies. Direct laser marking and laser engraving has now become a common process in the jewelry industry.

It offers a non-contact, abrasion-resistant, permanent laser mark onto almost any type of material including gold, platinum, silver, brass, stainless steel, carbide, copper, titanium, aluminum as well as a wide variety of alloys and plastics.

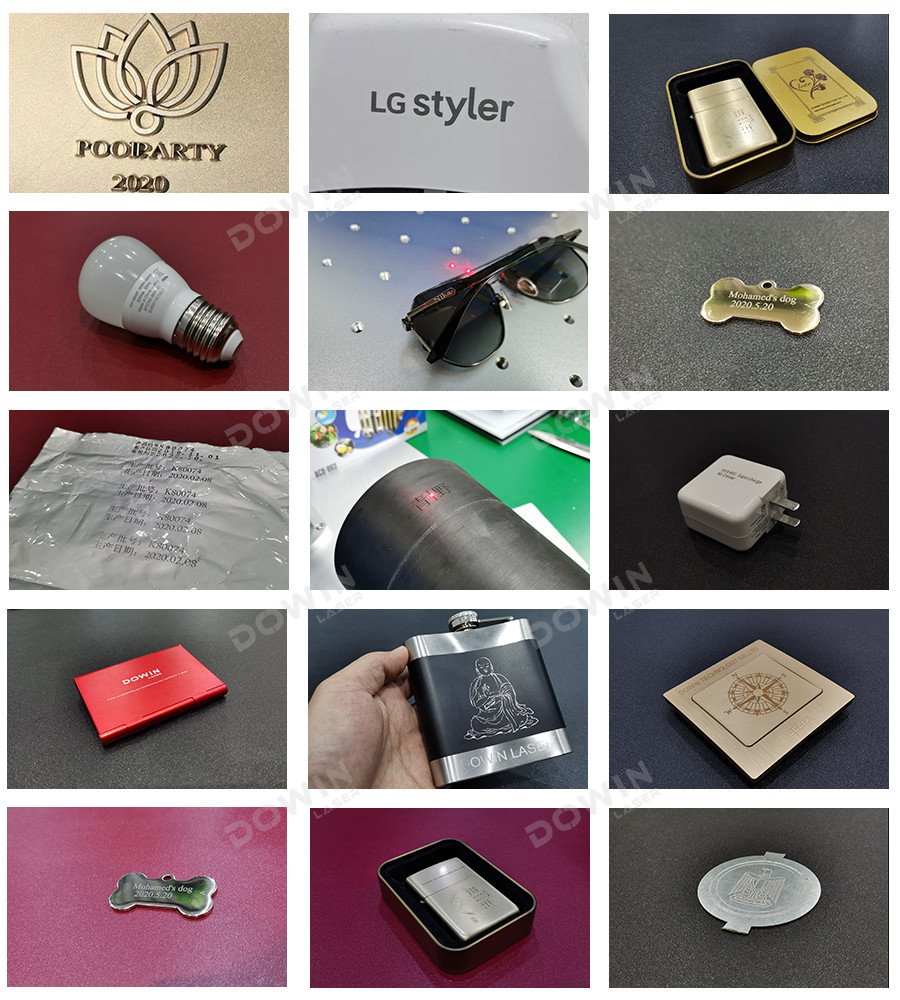

Desktop small enclosure model fiber laser marking machine

Marking Material

Both metal and some non-metal.Metal: carbon steel/ mild steel, stainless steel, aluminum, copper, magnesium, zinc; rare metal and alloy steel ( gold, silver, titanium, etc. ) special surface treatment ( aluminum anodized, plating surface, surface oxygen breaking of aluminium and magnesium alloy)

Non-metal: plastics such as ABS, PVC, HDPE , PP, PC, PE, rubber, resin , etc.

Applied Industries

3C, food, medicines, gifts, trademark signs, the phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tool accessories, knives, watches, jewelry, cars accessories, luggage buckle, cooking utensils, stainless steel products and other industries.

Marking Content

Identification text, serial numbers, corporate logos, 2-D data matrix, bar coding, graphic and digital images, or any individual process data can be produced with laser engraving.
