Conveyor Belt auto feeding CO2 Laser cutting Machine 1600*1000mm

1600mm x 1000mm (63″ x 39″) work area, accommodates roll materials up to 1600mm (63”) wide. This machine features a conveyor bed that is synchronized with the powered roll feeder in order to bring your material forward as needed. Although designed for roll materials, this laser machine is versatile enough to laser cut flat materials in sheet.

Conveyor Belt auto feeding CO2 Laser Cutting Machine 1600*1000mm

Send Email to Us

Get Price on Whatsapp

Details

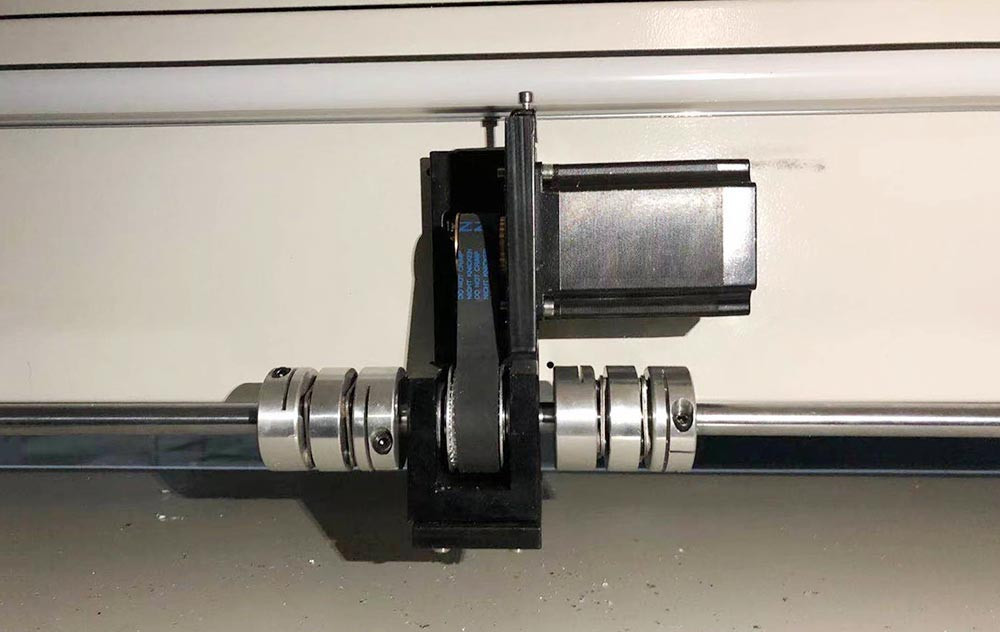

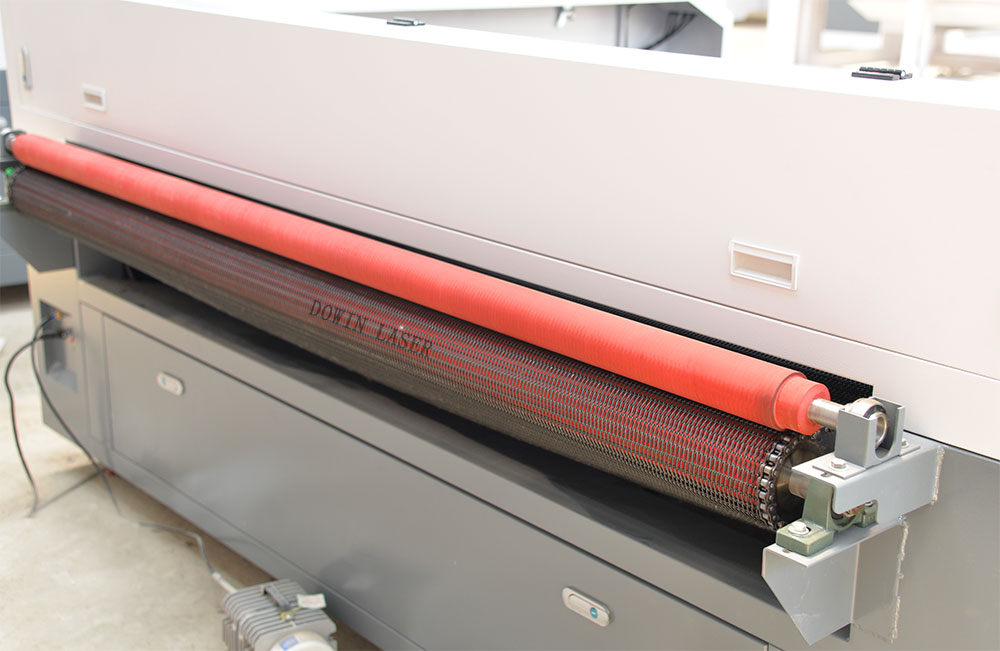

Long life span auto feeding conveyor and nylon wheels

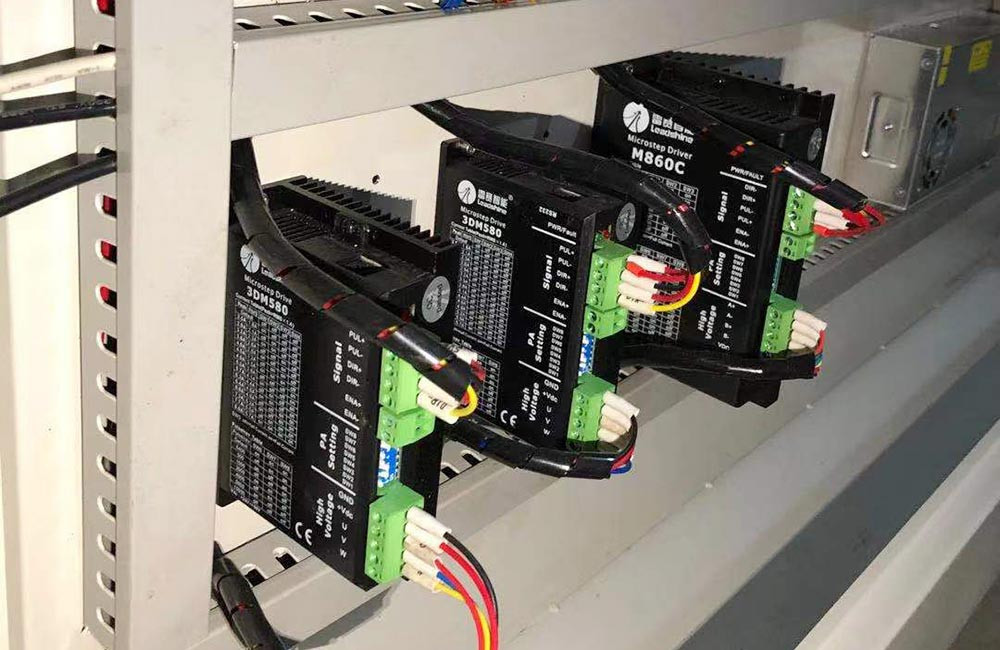

Chinese famous brand leadshine motor and driver.

Conveyor Belt auto feeding CO2 Laser cutting Machine 16001000mm (4)

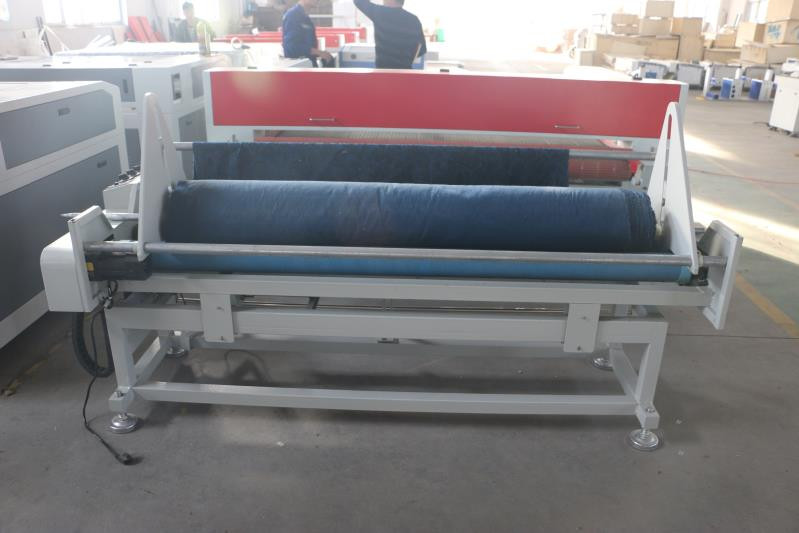

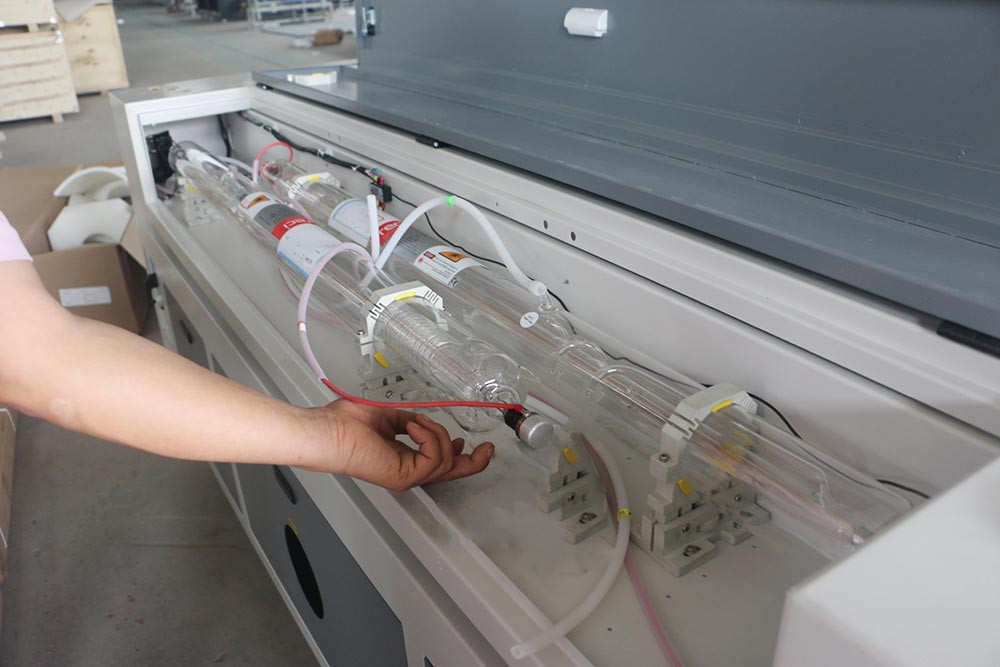

Double tubes & heads , Auto adjust roll holder are optional

Conveyor Belt auto feeding CO2 Laser cutting Machine 16001000mm (3)

Conveyor Belt auto feeding CO2 Laser cutting Machine 16001000mm (7)

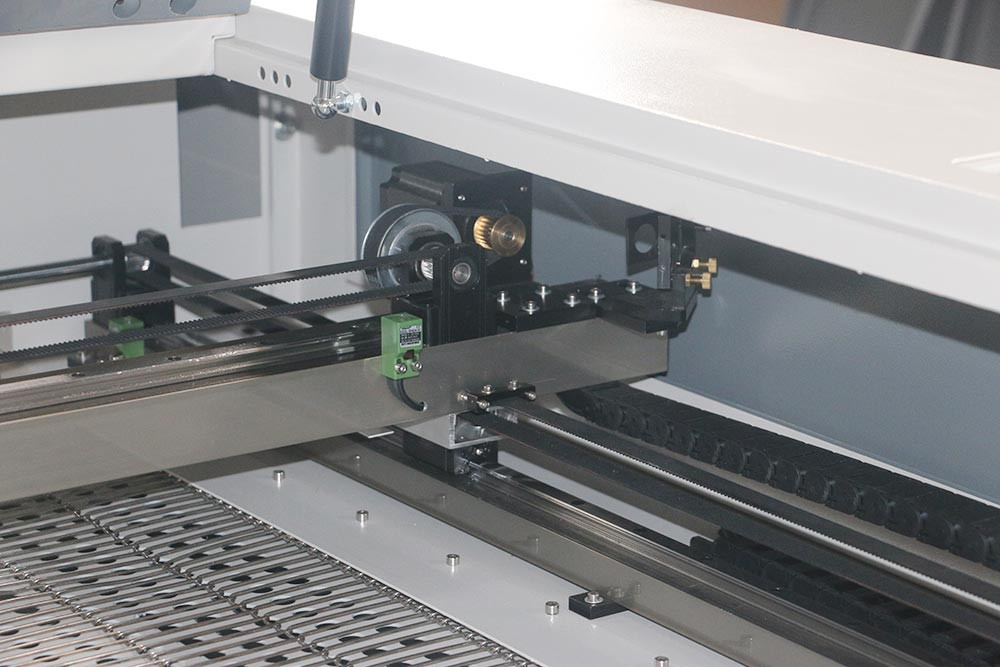

High precision high speed moving rails

Conveyor Belt auto feeding CO2 Laser cutting Machine 16001000mm (5)

Conveyor Belt auto feeding CO2 Laser cutting Machine 16001000mm (6)

Video introduction

Tech Specifications

Laser Type	CO2 glass laser tube
Laser Power	80W / 100W / 130W / 150W
Working Area	1600mm×1000mm
Working Table	Conveyor working table
Motion System	Step motor / Servo motor
Positioning Accuracy	±0.1mm
Cooling System	Constant temperature water chiller
Exhaust System	550W / 750KW Exhaust fan
Air Blowing System	air compressor
Power Supply	AC220V ± 5% 50/60Hz
Graphic Format Supported	AI, BMP, PLT, DXF, DST
External Dimensions	2200mm (L)×1800mm (W)×1200mm (H)
Net Weight	680KG

Applicable industry and materials

Apparel industry: Auto feeding laser cutting machine used for garment accessories cutting (label, applique), collar and sleeve cutting, garment decorative accessories cutting, apparel samples making, pattern making, etc.

Shoe industry: 2D/3D shoe upper, warp knitting shoe upper, 4D printing shoe upper. Material: Leather, synthetic leather, PU, composite material, fabric, microfiber, etc.

Bags and suitcases industry: engraving, cutting and perforating leather or textile of complex text and graphics.

Automotive industry: Suitable for cloth cover of car seat, fiber cover, seat cushion, season cushion, light- avoid mat, truck mat, car side-kick mat, large surrounded mat, car carpet, steering wheel cover, explosion-proof membrane. Material: PU, microfiber, air mesh, sponge, sponge+cloth+leather composite, woollens, fabrics, cardboard, Kraft paper, etc.
