60W 80W Desktop Laser engraving machine for Crystal Trophy

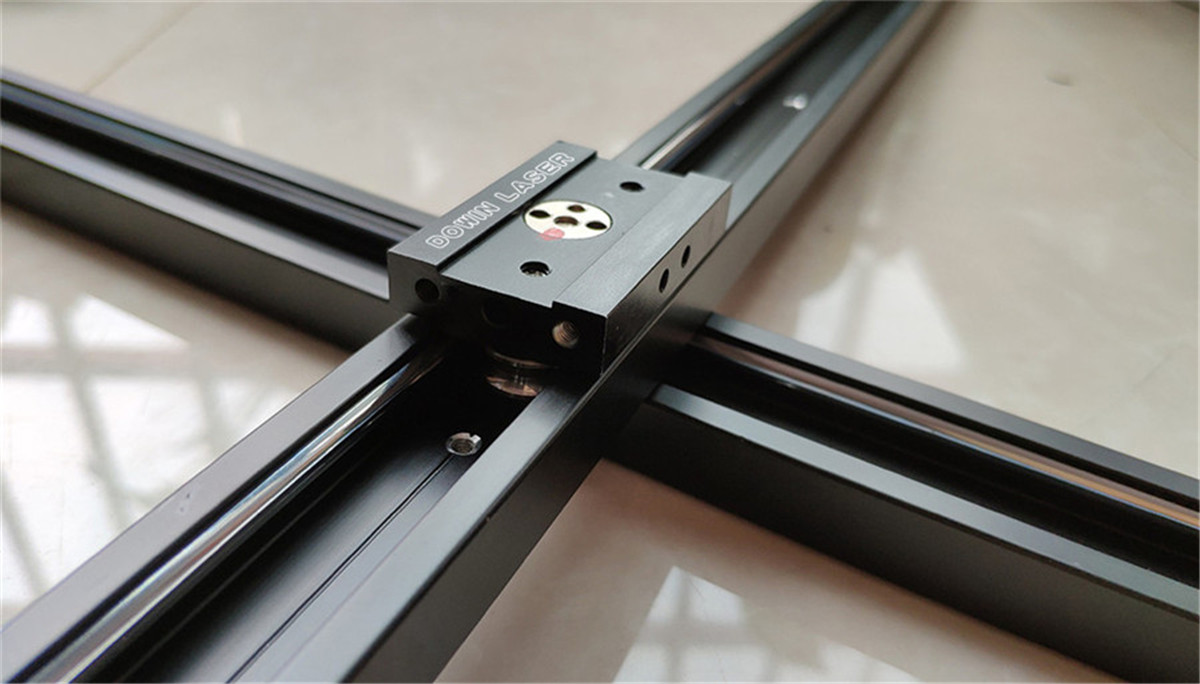

The X and Y axes use high-precision guide rails imported from South Korea.highest engraving precision laser machine runs efficiently and stably for a long time.

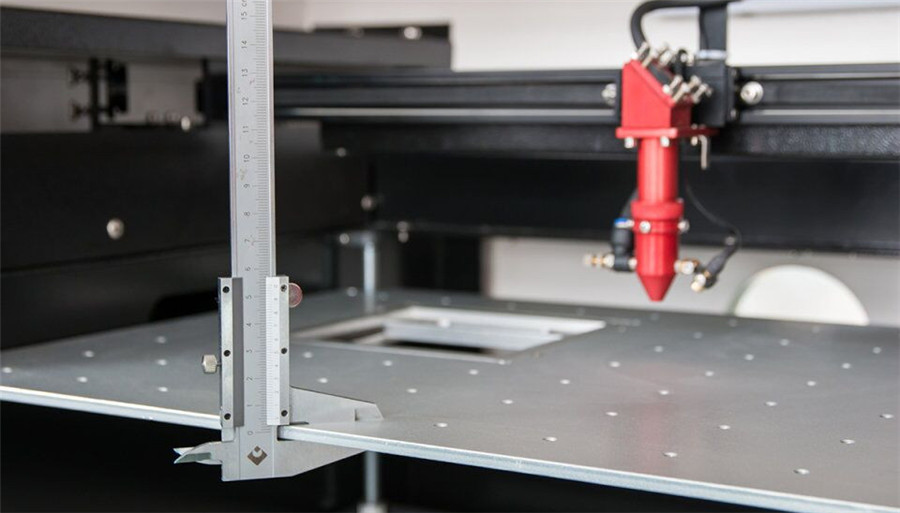

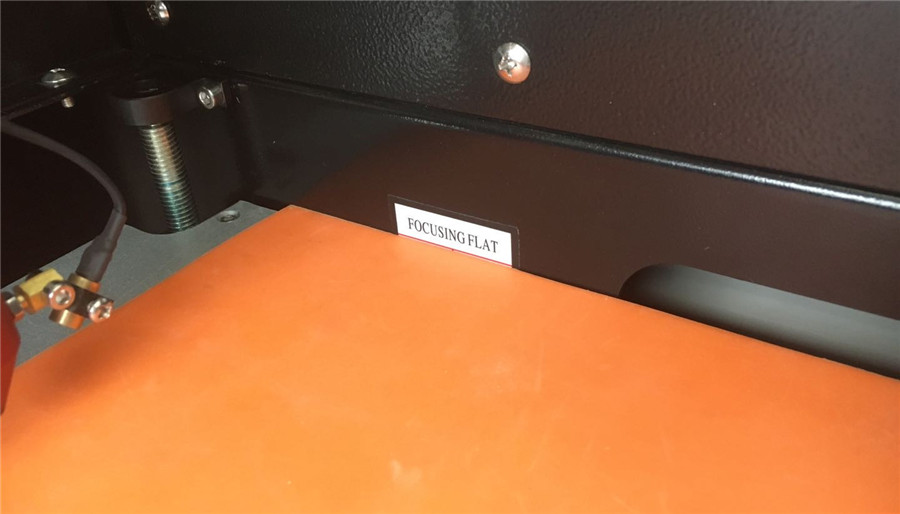

The With the focal length ruler on the right side of the laser engraving machine's working platform, the focus can be quickly determined without measuring the distance from the laser head to the material

Easy adjust laser engraving head with red focus ,5mm thickness alumina working table will never bend,table with screw holes and chuck jig, for easy positing Crystal Trophy

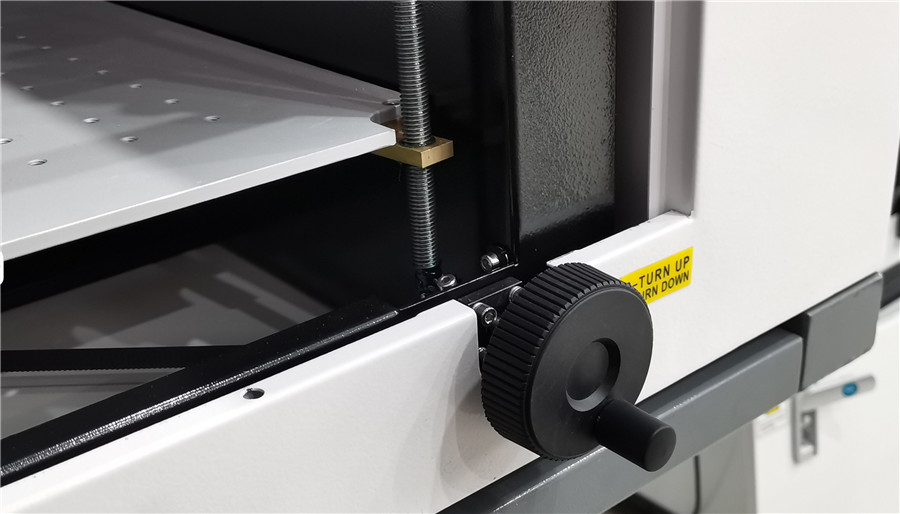

Manual up-down system, easy control , higher accuracy,no motors maintenance costs

Video introduction

DW-6040B laser machine engraves Glass and acrylic:

Tech Specifications

Model	DW-6040B
Processing area	600*400mm
Up-down system	Yes 0~250mm
Laser tube	60W / 80W
Engraving speed	0-30000mm/min
Cutting speed	0-3600mm/min
Software	Ruida software
Cooling system	CW3000 industry chiller
Port	USB 2.0
Resolution ratio	0.005mm
Scanning Precision	4000DPI
Minimum character	Letter 1.0 x 1.0mm
Laser tube's life	More than 5000 hours
Power supply	220V±10% /50HZ , 110V±10%//60HZ
Display	LCD monitor system
Working table	Double honey and Aluminum alloy table
Standard configuration	Air compressor,exhaust fan, chiller included
Packing size	1778777cm
Packing Weight	175KG

Note: As products are constantly updated, please contact us for the latest specifications.

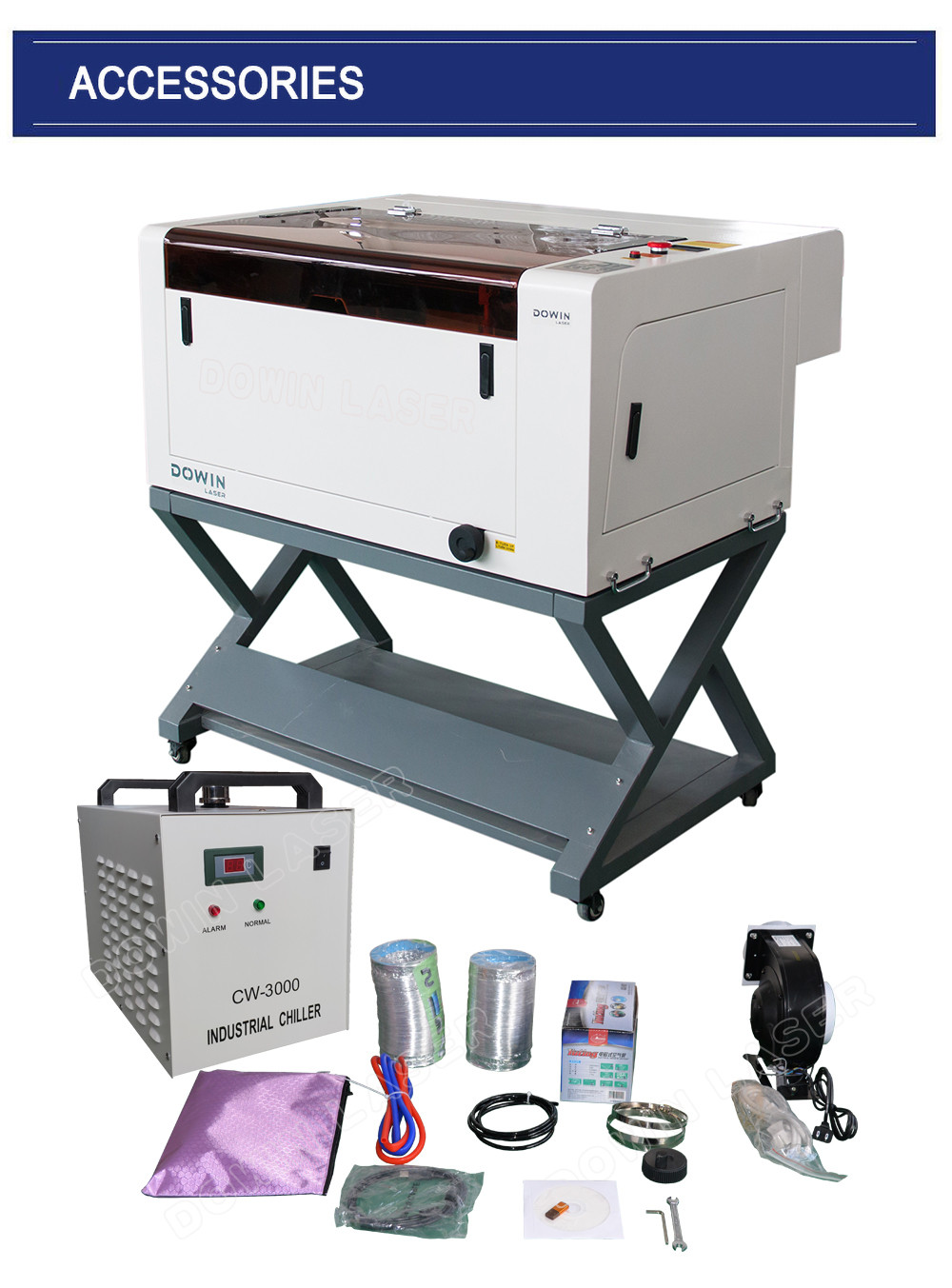

Free Standard accessories with Desktop Laser engraving machine DW-6040B:

Application

This special designed 60W 80W Desktop Laser engraving machine for Crystal Trophy Ensure the accuracy higher than similar models on the market.Mostly use for crystal engraving ,and other nonmetal engraving or cutting,like Advertising industry, Office industry, Packing industry, Gift industry, Decoration industry, Printing Industry.

Request

1.What is your main processing requirement? Laser cutting or laser engraving (marking) ?
2. What material do you need to laser process?
3. What is the size and thickness of the material?
4. Your company name, website, Email, Tel (WhatsApp…)?Are you reseller or need it for your own business?
5. How do you want to ship it , by sea or by express , whether do you have your own forwarder?
